How To fix A Dell Laptop Not Booting in 2024 [Complete Guide]

Finding that your Dell laptop won’t boot up can be extremely frustrating. Whether it’s completely dead and unresponsive or getting stuck during the boot process, a non-booting laptop renders your device useless.

The good news is that with some troubleshooting, you can likely get your Dell laptop booting again. In this comprehensive guide, I’ll walk you through the step-by-step process to diagnose and fix a Dell laptop that refuses to boot.

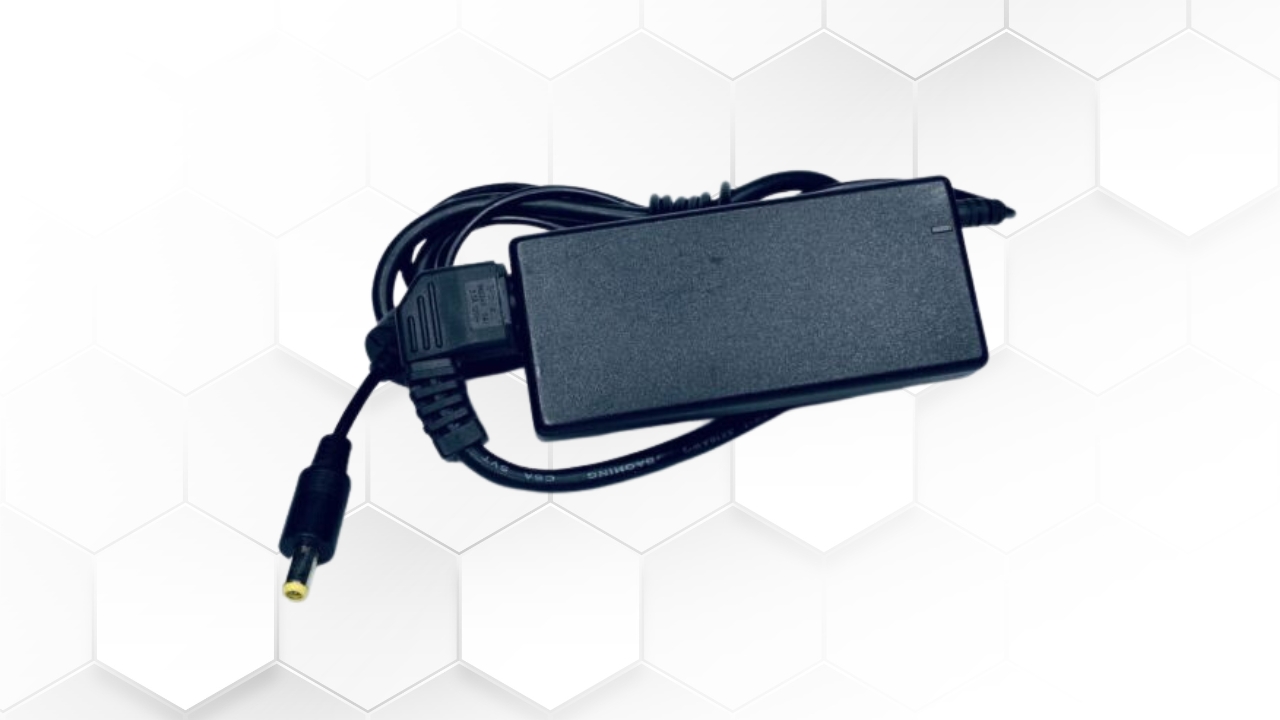

Troubleshoot the Power Supply

The first thing to check is whether your laptop is receiving power at all.

Dell Laptop Not Booting
  • Plug your Dell charger into the laptop and an outlet. Check for any lights on the laptop chassis or charger that would indicate it’s receiving power.
  • If the charger light comes on but the laptop remains dark, try a different charger if you have access to one. The cable could be damaged while the brick still works.
  • Use a multimeter to test voltage on the tip of the charger if possible. Confirm it’s providing the expected voltage (seen on the charger label).
  • If the laptop receives zero power at all, the motherboard, battery, or DC jack may have failed. Trying the steps below may help isolate the issue further.

Power Cycle the Laptop

Power cycling drains any residual charge and resets the laptop. Here’s how:

  1. Make sure the laptop is unplugged from power.
  2. Remove the battery if possible. Most newer Dells have internal batteries.
  3. Press and hold the power button for 20 seconds.
  4. Reconnect the battery and power cable.
  5. Attempt to turn on the laptop normally.

Power cycling can fix laptops that appear completely dead. If it still doesn’t work, move on to the next steps.

Check Component Connections

Loose connections inside your Dell can prevent normal power up.

Check Component Connections
  • Check that the power button/cable is properly connected to the motherboard.
  • Reseat the RAM by removing and reinserting the modules. Pushing in firmly often fixes a poor connection.
  • Try detaching and reconnecting the hard drive data and power cables.
  • Inspect the cables for any signs of damage too. Fraying and loose wires can cause connection issues.

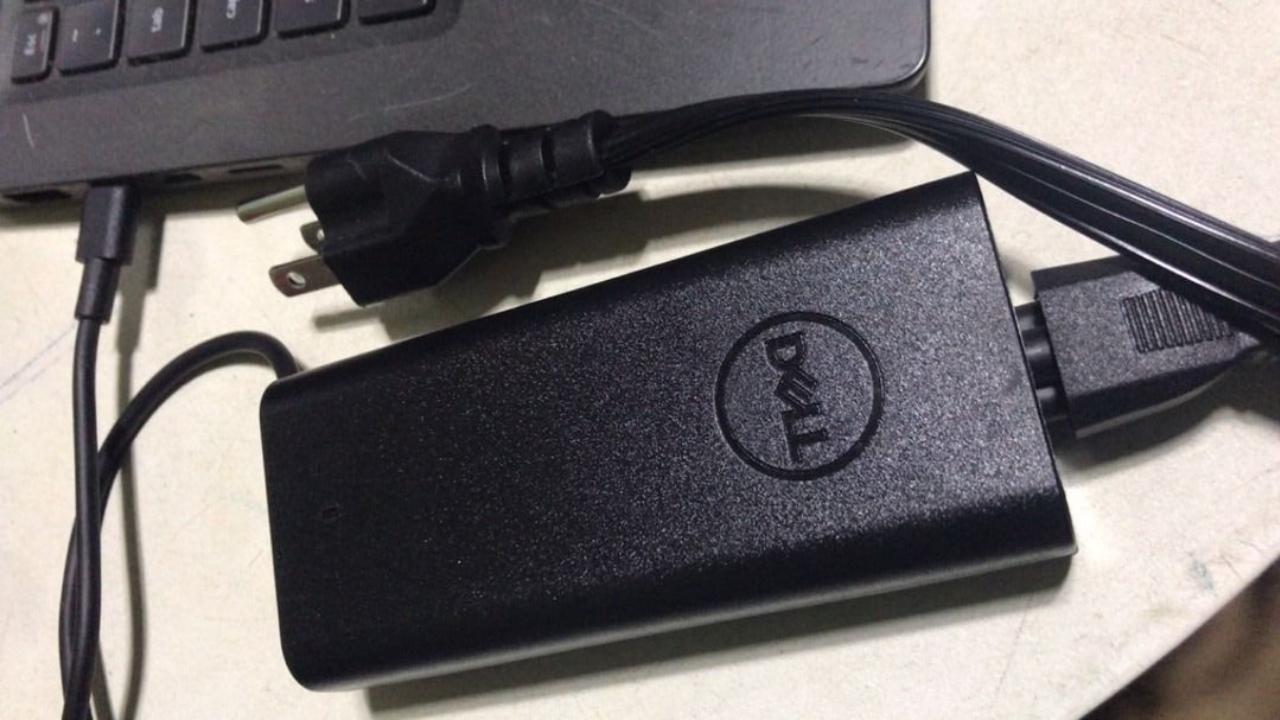

Test the AC Adapter

A faulty AC adapter prevents your Dell laptop from charging properly. To confirm the adapter is working:

  1. Disconnect the adapter from the laptop but keep it plugged into the wall.
  2. Check for a solid LED light on the brick. No light indicates a bad adapter.

You can also use a multimeter to test output voltage as mentioned earlier. Replace the adapter if it’s not providing expected voltage.

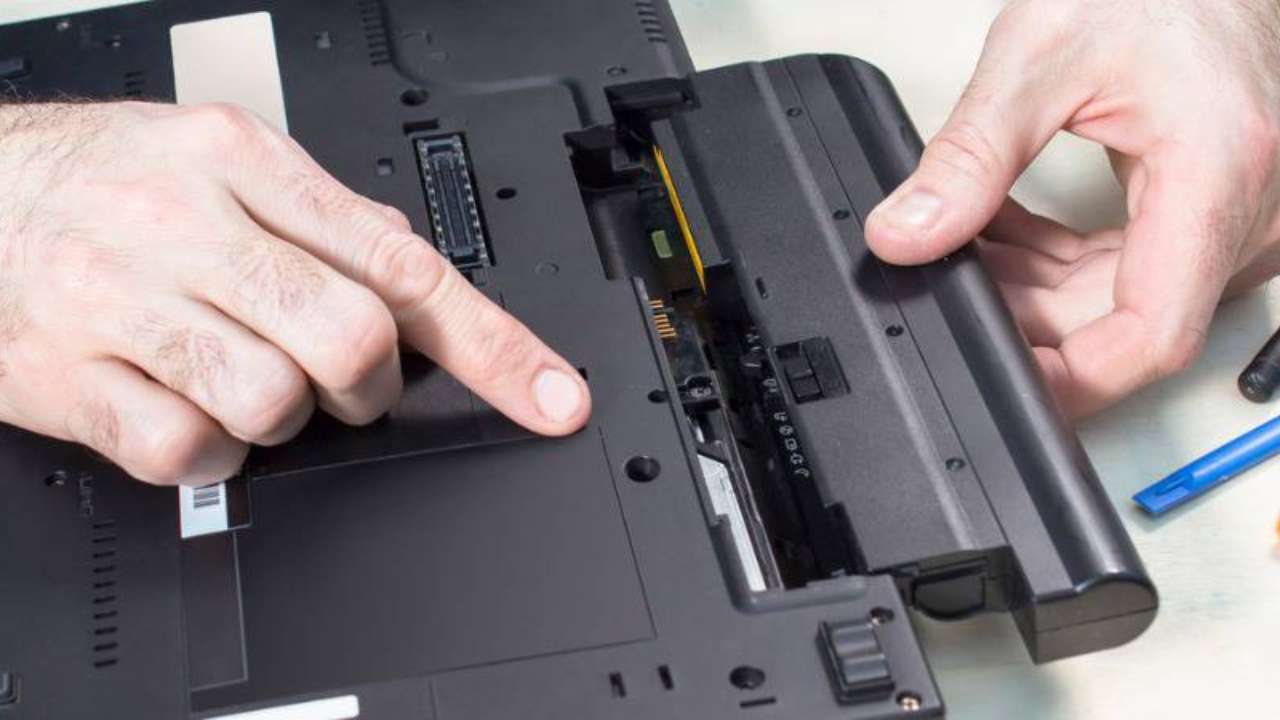

Remove the Battery

If your Dell powers on when plugged in but not on battery alone, the battery has likely failed. Follow the steps below to remove and potentially replace the battery:

Remove the Battery
  1. Power down and unplug the laptop. Close the lid and flip it over to access the bottom.
  2. Look for a battery release latch or slide lock. Swivel or slide it to unlock the battery.
  3. The battery will pop up at an angle. Lift it out of the bay and disconnect the cable.
  4. With the battery removed, connect the AC adapter and try turning on the laptop. If it powers on, you know the battery was the issue.
  5. Order a replacement DELL laptop battery and follow the removal steps in reverse to install it.

Run Hardware Diagnostics

Dell laptops have a built-in diagnostic tool called ePSA that can detect hardware issues preventing booting.

To run it:

  1. Power on the laptop and press F12 repeatedly as soon as you see the Dell logo.
  2. Select “Diagnostics” from the boot menu using arrow keys.
  3. Choose your language when prompted. The testing will begin automatically.
  4. Make note of any error code reported at the end. The code points to the faulty component.
  5. Search Dell’s support site for details on your diagnostic error code.

Boot Into Safe Mode

Booting into Windows Safe Mode starts your laptop with only the essential drivers needed. This can bypass problems caused by 3rd party apps or software conflicts.

To boot into Safe Mode:

  1. Force shutdown the laptop by holding the power button for 10 seconds.
  2. Power it back on and quickly press F8 as the Dell logo appears.
  3. Select “Safe Mode” from the Advanced Boot Options menu.
  4. Log in normally once at the desktop. Safe Mode will be indicated in the bottom corners.
  5. Run antivirus scans, uninstall recently added programs, or rollback drivers in Safe Mode.
  6. Restart normally afterward to see if the issue is resolved.

Reset BIOS to Default

An incorrect BIOS setting can prevent your Dell laptop from booting properly. Resetting to default values clears any bad settings:

  1. Power on the laptop and press F2 repeatedly on the Dell logo.
  2. Navigate to Exit > Load Setup Defaults.
  3. Select this option and confirm to reset BIOS defaults.
  4. Save changes and exit to reboot.
  5. Attempt normal startup. The laptop should attempt to boot as normal again.

Reseat or Replace Hardware

If you’ve tried the above steps with no luck, a hardware component has likely failed or needs reseating.

Reseat or Replace Hardware
  • As mentioned before, reseat the RAM and hard drive connections.
  • Remove any optical drives, hard drives, and other components and try booting. This isolates the faulty piece.
  • If reseating and isolation doesn’t work, replace the component. Swap in known working parts like RAM, GPUs, and hard drives from other laptops if possible.
  • For parts like the motherboard that can’t be easily swapped, replacement will be necessary. Look up a service manual for your specific Dell model for steps on properly removing and installing components.

Wipe the Hard Drive

Corrupted Windows system files or bad sectors on your hard drive can prevent booting. Wiping the drive erases these problem areas:

  1. Remove the hard drive and connect it to another PC using a SATA to USB adapter.
  2. Open Disk Management on the working computer. Right-click your Dell’s drive and select “Format”.
  3. Choose a file system like NTFS and perform a “Quick Format”. Click OK.
  4. After formatting, shut down both PCs. Install the wiped drive back into your Dell laptop.
  5. Attempt to boot again from a Windows recovery drive. The fresh drive should allow installation.

Perform a Factory Reset

Resetting your Dell laptop restores Windows to its original factory condition. This completely wipes your drive of any OS issues:

  1. Turn on your laptop and press F8 as the Dell logo appears.
  2. Choose “Repair Your Computer” from the Advanced Boot Options.
  3. Select “Troubleshoot” then “Reset Your PC”.
  4. Follow the prompts to complete the factory reset process.
  5. Once complete, your Dell will reboot into a fresh install of Windows ready to set up.

Back up important files first if possible, as a reset erases everything. Also have your Windows key code handy to reactivate Windows.

Contact Dell Support

If you’ve tried all applicable troubleshooting steps with no success, your best bet is contacting Dell.

  • Chat or speak with a support rep online or by phone. Explain the issue in detail along with attempted fixes.
  • Have your Dell’s service tag number ready to identify the exact model.
  • If under warranty, Dell will make arrangements to repair the laptop free of charge.
  • Out of warranty support is still available for a fee. Ask what repair options are available for your model.

With the right troubleshooting steps, you should be able to revive an unbootable Dell laptop in most cases. Start with the simplest solutions like a power cycle and work your way to more complex fixes until your computer successfully powers on again.

Frequently Asked Questions About Dell Laptops Not Booting

Why does my Dell laptop power on but not boot?

If your Dell powers on but doesn’t complete booting, it’s likely a software issue like corrupt Windows files or a driver conflict. Try booting into Safe Mode or resetting Windows to factory conditions.

How do I force restart my Dell laptop?

To force restart a frozen Dell laptop, hold down the power button for 10-15 seconds until it powers off. Then wait a few seconds before turning it back on normally. Avoid forced reboots unless your system is totally unresponsive.

What should I do if my Dell laptop is completely dead?

First, try the power cycle steps mentioned earlier. Also make sure the AC adapter is providing power. If the laptop remains completely dark, the motherboard, battery, or power jack may have failed, requiring repair.

Why does my Dell get stuck on the logo screen?

If your Dell boots to the logo but freezes and won’t continue to Windows, it’s likely a software conflict or corrupt file. Attempt Safe Mode or try wiping the hard drive completely to fix boot file issues.

How do I enter the boot menu on my Dell?

To access the boot menu, power on your Dell laptop and immediately start tapping the F12 key continuously until the boot menu appears. This lets you select diagnostics or bootable drives.

1 thought on “How To fix A Dell Laptop Not Booting in 2024 [Complete Guide]”

  1. I had a similar problem on an Inspiron 1520. The computer seemed to be working, but the screen was blank. In my case it turned out to be a dead video card. I found the same old video card (GeForce 8600M GT) on ebay for $15 and replaced it. Now it’s working fine.

    Replacing a video card on a laptop is not easy though. You need to open up the laptop, remove the old card and its heat sink out, clean the heat sink well with alcohol, apply some silver paste on the new GPU and then put everything back together. Vacuum all the dust at the heat sink vents while at it.

    I’d recommend ruling out all other options before attempting at the video card. Sometimes dead memory sticks also prevent booting, so you could try taking them out one at a time, swapping them, etc…
